QSFP28-100G AOC07

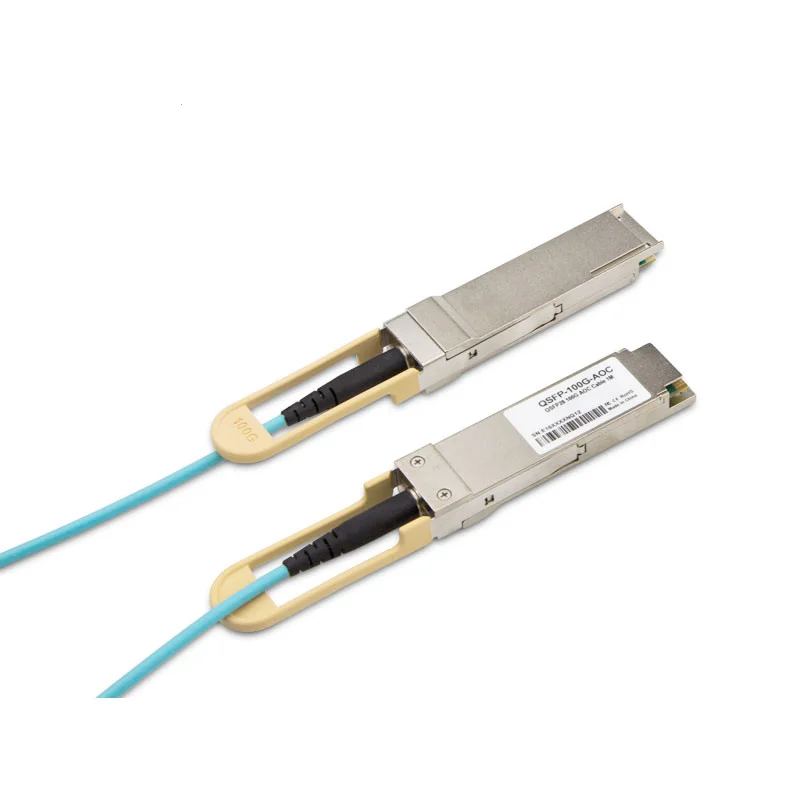

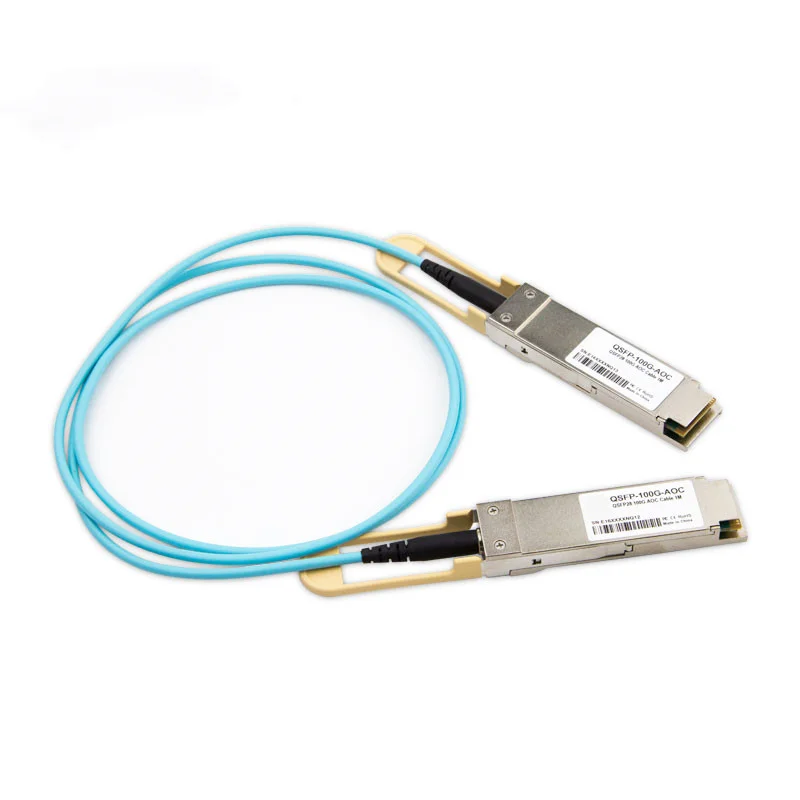

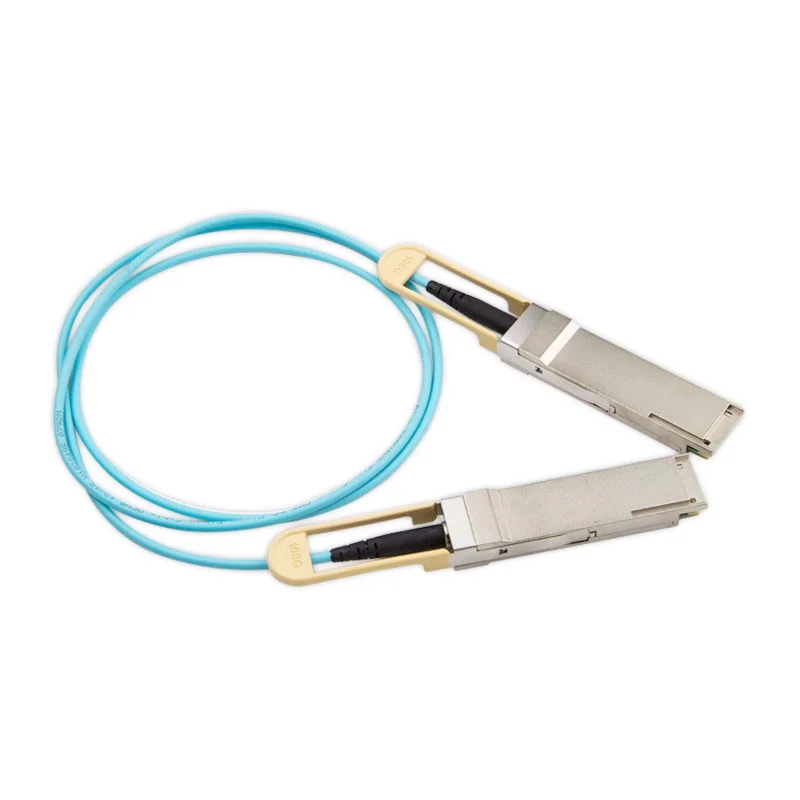

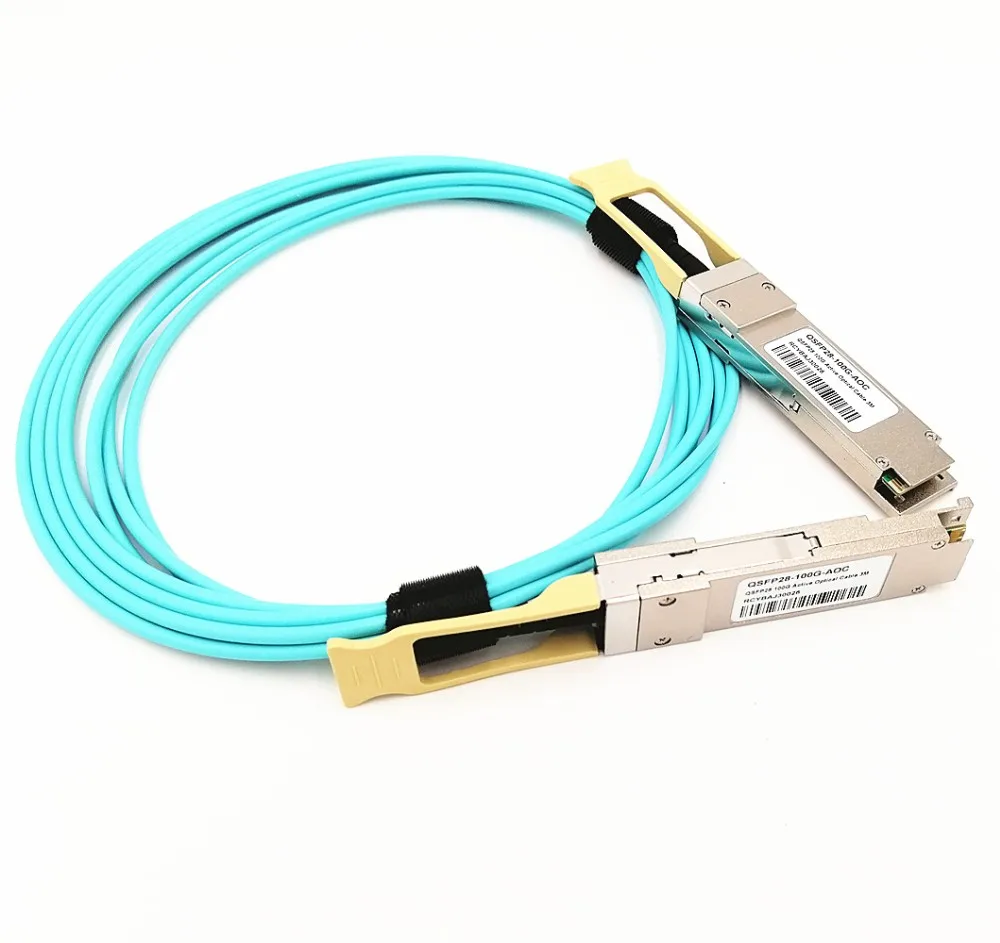

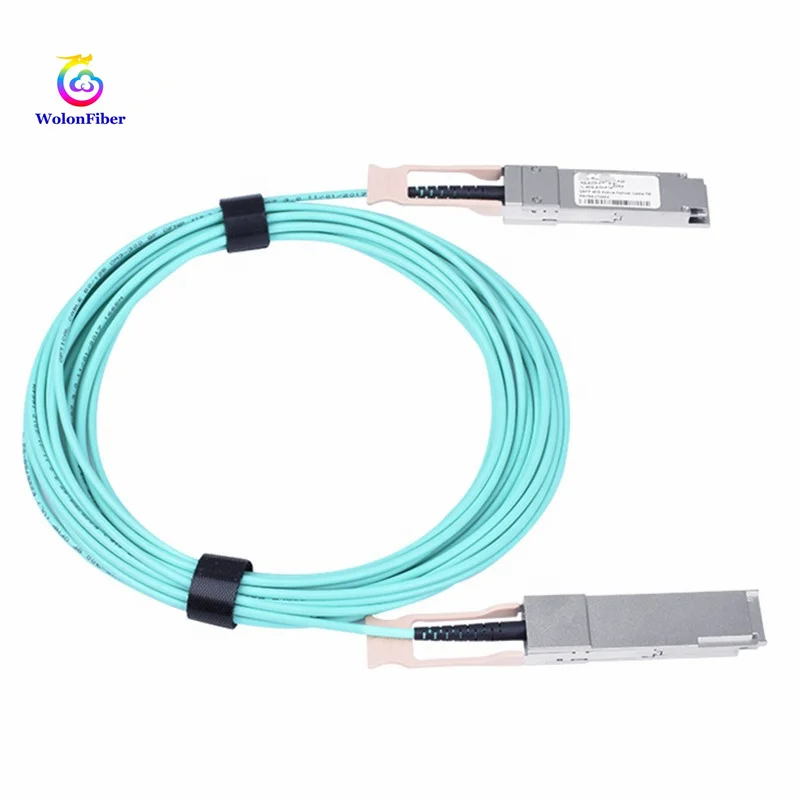

QSFP28 + Active Optical Cables (AOCs) are active optical cables of the QSFP + interface. The module has a photoelectric conversion device inside to convert the electrical signals into optical signals and transmit distances up to 100 meters. The products have four channels, each channel transmission rate up to 25.3125Gb / s, rate of 100Gb / s. Its low power consumption, low bit error rate, easy to manage, high-performance features are widely used in short distance high-speed connection such as 100 Gigabit Ethernet, 100Gigabit switches, 100 Gigabit servers, supercomputers, cloud computing and cloud storage networks.

Send Inquiry

Add To Inquiry

Description

product-1-1

Compatible Brands

product-1-1

Company Informationuhan Wolon communication technology Co., Ltd. is located in China Optical Valley . Wuhan.It specializes in R&D, production and sales of PLC Splitter, patch cord, Optical fiber distribution frame, Optical cable cross connection cabinet and other FTTH products. With the great technologies in optical research and production , Wolon gathers a group of optical talents on fiber communication,which possess the rich experience of R&D and a strong capability of technology innovation.The company has the world's advanced equipment in producing, testing and packaging. Wolon has a strict quality control system, in 2013 at the same time passed the ISO9001 certification and certification TLC.

With superb technology, efficient production, strict testing standards and low prices, Wolon wins market recognition. Our products have been widely applied to the three major domestic operators, radio and television systems, electric power systems, military, government agencies and other enterprise networks. At the same time, our products are exported to Russia, Europe, Southeast Asia, India and other overseas markets, and access to customers praise.

To create the world's leading brand communication products, Wolon always sets quality first,customer-focused purpose, developing on innovative technology" as our company core values. We are sincerely looking forward to people at domestic and abroad to visit our factory, and corporate with us.We will provide you best products and service.

Product Features：

●Transmission data rate up to 25.3125Gbit/s per channel

• Compliant with QSFP + MSA &SFF-8665 standard

• Ompliant with IEEE 802.3bj 100GBASE SR4

• Hot pluggable electrical interface

• Differential AC-coupled high speed data interface

• OM3/OM4 Multi-mode optical fibre cable of up to 100m

• 4 channels 850nm 25G VCSEL array

• 4 channels 25G PIN photo detector array

• Supports serial ID functionality thru EEPROM

• Management Interface and digital diagnostic

• Power consumption less than 2.5W

• 3.3V power supply voltage

• Operating temperature 0°C to +70°C

• RoHS 6 compliant(lead free)

Applications：

● 100G Ethernet

● Proprietary High Speed Interconnections

● Datacenter

● 100GBASE-LR4 Ethernet Receiver monitor

Transceiver Block Diagram：

Mechanical Dimension：

Laser Safety：

This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
