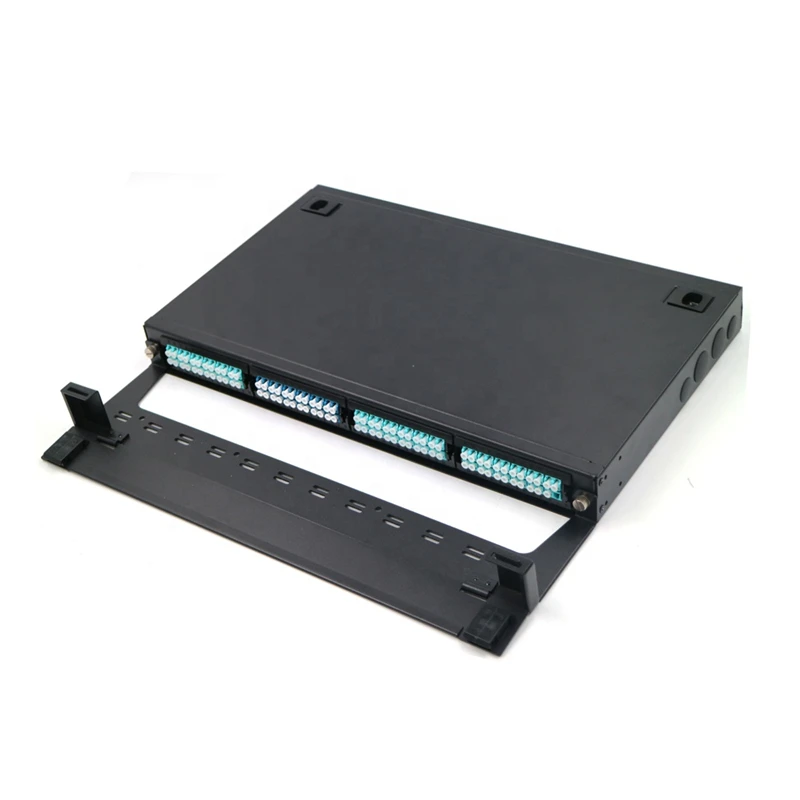

1U 96 Cores MPO MTP

Description

1U 96 cores MPO MTP cassettes Patch Panel Sliding Guided Fiber Optic Customized Design

Product Description



MPO/MTP		SM standard	SM low loss	MM standard	MM low loss
Insertion loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Max	0.70dB	0.35dB	0.70dB	0.35dB
Return loss		APC≥50dB		≥25dB	≥35dB
Repeatability		UPC≥40dB
		≤0.30 dB (plugging over 500 times) ≤0.30 dB (plugging over 1000 times)
Interchangeability		≤0.30 dB (matching with any connector)
Extension		≤0.30 dB (maximum tension 66 N)
Vibration		≤0.30 dB (10~55 HZ)
Temperature range		-40℃~+75℃

MPO Cassette modules provide Secure transition between MPOand LCor SCPATCHING.

Modular system allows for rapis seployment of nigh density data.

Centre infrastucture as well as improved troubleshooting and reconfiguration during moces,adds and changes.

Can be mounted in 1 Uor 4U 19 multislot chassis.

MPO cassettes contain factory controlled andtes ted

MPO-LC fan-outs to deliver optical performance and reliability,

Low loss MPO Elite and LC or SC premium versions are off ered featuring,low insertion loss for demanding power budget high speed networks.

APPLICATION

♦Data Centre Infrastructure

♦Ethernet, fiber channel, ATM, LAN, MAN and WA

♦19-inch standard size, fit for 19-inch rack, 23-inch size is available on request

♦Standard size is 1U, 2U, or 4U are available on request

♦12,24,48,96Port optional

♦Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.

♦Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation

♦Provide termination, protection, connection, management of fiber optic cable
