Mpo-st 12f Breakout Cable Fiber Patch Cord
China ZKP introduces a robust line of MPO-ST 12F Breakout Cable Fiber Patch Cords, designed to streamline network connectivity and facilitate high-density fiber optic connections in data centers, telecommunications, and other networking environments.
Description
main feature
High density: One MPO-ST 12F Breakout Cable can accommodate 12 optical fibers, while traditional connectors such as SC and LC can only accommodate one optical fiber. This enables the MPO-ST 12F Breakout Cable to provide higher connection density in the same space, saving rack space and reducing cabling costs.
Easy to install and maintain: The MPO-ST 12F Breakout Cable uses a push-pull connector for quick and easy connection and disconnection. It also has a visual pin for easy inspection of the connection status.
Stable and reliable performance: The MPO-ST 12F Breakout Cable uses precision pins and precision alignment technology to ensure the stability and reliability of fiber optic connections. It has low insertion loss, low return loss, and high tensile strength to meet the application requirements of high bandwidth, high data rate, and long-distance transmission.
High cost performance: Compared with traditional connectors such as SC and LC, the MPO-ST 12F Breakout Cable is lower in price and more cost-effective.
Mpo-SC 12F Breakout Cable Fiber Patch Cord

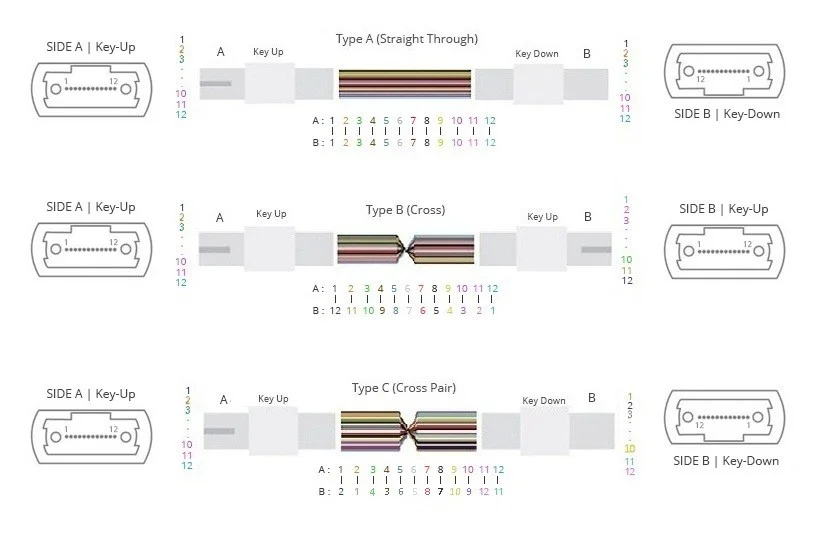

MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex.There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers,12fibers,24fibers. MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and Lclass(super low loss).
Product Description
Specifications:
|
Insertion Loss dB |
≤0.35 |
|
Return Loss dB |
≥50 for PC, ≥65 for APC |
|
Tensile dB |
≤0.30( Max 66N) |
|
Vibration dB |
≤0.30 (10~ 50HZ) |
|
Operating Temperature dB |
≤0.30 ( -40°C ~ +75°C 5Cycles ) |
Product Description
| Parametor | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 | |||
