MPO vs MTP® Connectors: Demystifying Structural Differences for High-Density Data Center Architects
Jun 01, 2026
As modern data centers aggressively migrate from 10G/40G to 100G, 400G, and even 800G Architectures, the demand for ultra-high-density cabling has skyrocketed. At the heart of this physical layer revolution are multi-fiber push-on connectors. However, network engineers and procurement managers frequently encounter a critical dilemma when specifying components: MPO vs MTP.
While these terms are often used interchangeably in casual conversation, they are fundamentally different in terms of mechanical engineering and long-term optical performance. Understanding these nuances is essential to avoiding costly attenuation issues in your high-density data center links.
What is an MPO Connector?
MPO stands for "Multi-fiber Push-On". It is an industry-generic term defined by international standards such as IEC-61754-7 and TIA-604-5 (FOCIS 5). An MPO connector can terminate anywhere from 8 to 144 fibers within a single ferrule, with 12-core, 24-core, and the newer high-density 16-core/32-core configurations being the most prevalent in optical fiber patch cord manufacturing.
What is an MTP® Connector?
MTP® is a registered trademark of US Conec. It is a premium, high-performance brand of MPO connectors engineered to exceed standard generic specifications. While fully compliant with all generic MPO standards, an MTP fiber cable integrates several structural enhancements designed to lower insertion loss, improve return loss, and withstand mechanical stress over repeated matings.

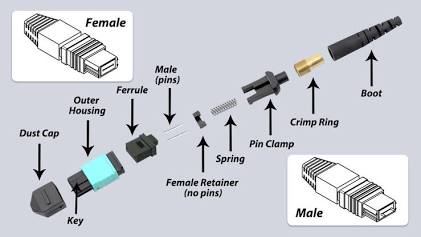

Internal Components of a Multi-Fiber Connector. Source: VCELINK
3 Critical Mechanical Advantages of MTP® over Generic MPO
The superior stability of MTP fiber cabling comes down to specific patented design choices inside the connector body. Let's break down the three primary mechanical distinctions:
1. The Floating Ferrule Mechanism
In a generic MPO connector, the internal ferrule is rigidly fixed to the housing. When the cable is subjected to an unexpected pull or side-load, the physical contact between mating ferrules can easily be disrupted, causing a sudden spike in insertion loss (IL).
The MTP Solution: The MTP connector utilizes a floating ferrule. This allows the ferrule to float internally under spring tension, maintaining precise physical contact at the fiber tips even if the outer cable jacket is pulled or manipulated during high-density cable routing.
2. Elliptical Guide Pins vs. Chamfered Round Pins
Multi-fiber alignment relies heavily on a male-to-female mating system using microscopic metal guide pins. Generic MPO connectors typically use chamfered round pins. Over time, the sharp edges of these pins can scrape the plastic guide holes of the mating female ferrule, creating microscopic debris that causes air gaps and permanent damage.
The MTP Solution: MTP connectors utilize strictly controlled, elliptical guide pins. The rounded, smoothed profile reduces wear-and-tear significantly, trapping debris away from the optical faces and preserving alignment tolerance over hundreds of matings.
3. Advanced Metal Pin Clamp and Spring Configuration
The internal spring force pushes the fibers together to ensure uninterrupted light transmission. Generic MPO connectors often use plastic or poorly aligned retention clips that can shift under stress, causing uneven force across a 12- or 24-fiber row.
The MTP Solution: MTP incorporates a heavy-duty metal pin clamp and a centered oval spring. This architecture ensures that uniform forward pressure is applied evenly across the entire surface of the ferrule, mitigating the risk of the "outer fiber attenuation" effect often seen in lower-tier generic assemblies.
Performance Impact: The ROI of Specifying Premium Optics
When calculating the total loss budget for a multi-stage 100G to 400G migration, every fraction of a decibel matters.
| Metric | Standard Generic MPO | Elite / Low-Loss MTP® |
|---|---|---|
| Typical Insertion Loss (SM) | 0.75 dB | 0.25 dB |
| Max Insertion Loss (MM) | 0.60 dB | 0.35 dB |
| Mating Durability | ~500 Cycles (Higher IL degradation) | ~1000 Cycles (Stable IL) |
Engineering Verdict: How to Choose?
For routine, short-distance enterprise cabling where budgets are exceptionally tight and the link loss budget is highly forgiving, a standard quality MPO connectors system might suffice.
However, for ultra-high-density data centers, backbone infrastructures, and spine-leaf architectures running 400G/800G networks, investing in premium MTP fiber cable infrastructure is a necessity. The ultra-low insertion loss prevents transmission errors, while the robust mechanical design eliminates expensive downtime during future network upgrades.
