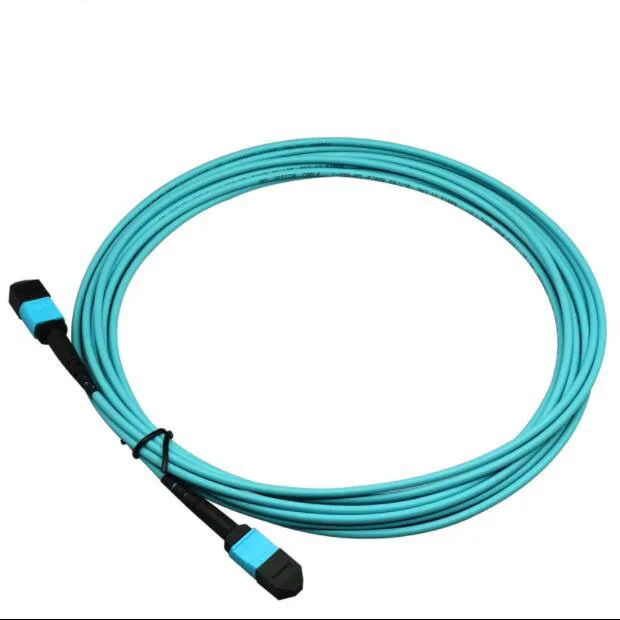

8 Core 12 Core 24 Core MPO Patch Cord
8 Core 12 Core 24 Core MPO Patch Cord is a multi-core fiber optic patch cord used to connect fiber optic equipment.
Description
Features
12 core cable connection
OM3 fiber optic cable
Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
Specifications
| MTP/MPO Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.70 (Standard) | ≤0.70 (Standard) |
| ≤0.35 (Excellent) | ≤0.35 (Excellent) | |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
| LC/SC/FC/ST/E2000 Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |

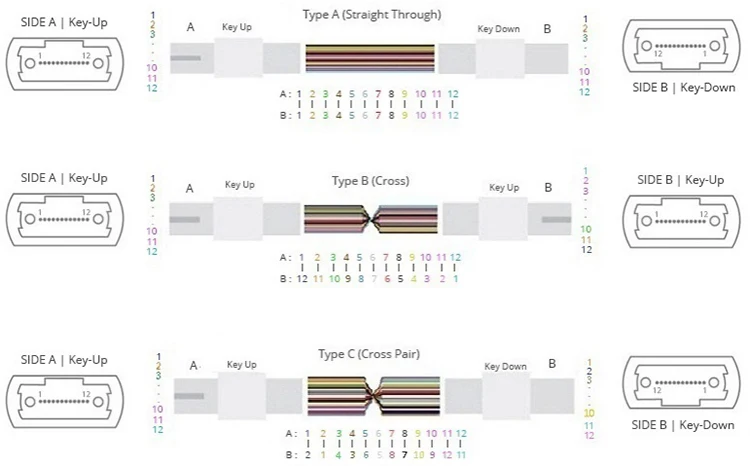

Pre-terminated MPO MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO -LGX Cassette, you can choose any of the polarities as you need.

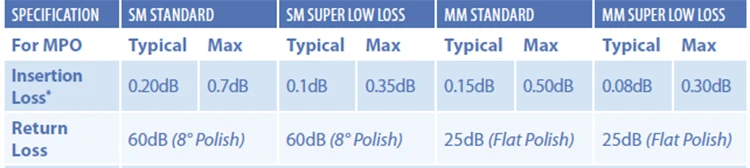

MPO MTP patch cord's Specification:
Packaging & Shipping
1.Prepare materials:
①8 Core 12 Core 24 Core MPO Patch Cord
②Two fiber optic equipment
③alcohol cotton
④Dust-free paper towels
2.Clean the connector:
①Use alcohol wipes and lint-free paper towels to clean the MPO connector end faces.
②Make sure the connector end faces are free of dust, grease, or other contaminants.
3.To connect fiber optic equipment:
①Plug the MPO connectors into the fiber optic ports of both fiber optic devices.
②Make sure the connector is securely inserted into place.
4.Test connection:
①Use a fiber optic tester to test the connectivity of the MPO connection.
②Make sure the connection is good and there are no signal drops.
Here are some considerations for using the 8 Core 12 Core 24 Core MPO Patch Cord:
①Do not touch the MPO connector end face. Touching the connector end face can cause dust and grease contamination, which can affect connection performance.
②Do not pull hard on the MPO connector. Pulling hard on the connector may damage the connector or fiber.
③Do not use MPO connectors when the connectors are wet or dusty. Moisture or dust can cause connector failure.
④Do not expose MPO connectors to direct sunlight or extreme temperatures. Direct sunlight and extreme temperatures can cause connectors to age.
